Capacitive Sensing Switch Manufacturer

Material: PET/PC/PVC/Acrylic adhesive
Size/ Thickness: Customized Size/ Thickness Accepted
Flexible Or Rigid: Yes
Certification: ISO9001:2015 /ROHS/SGS

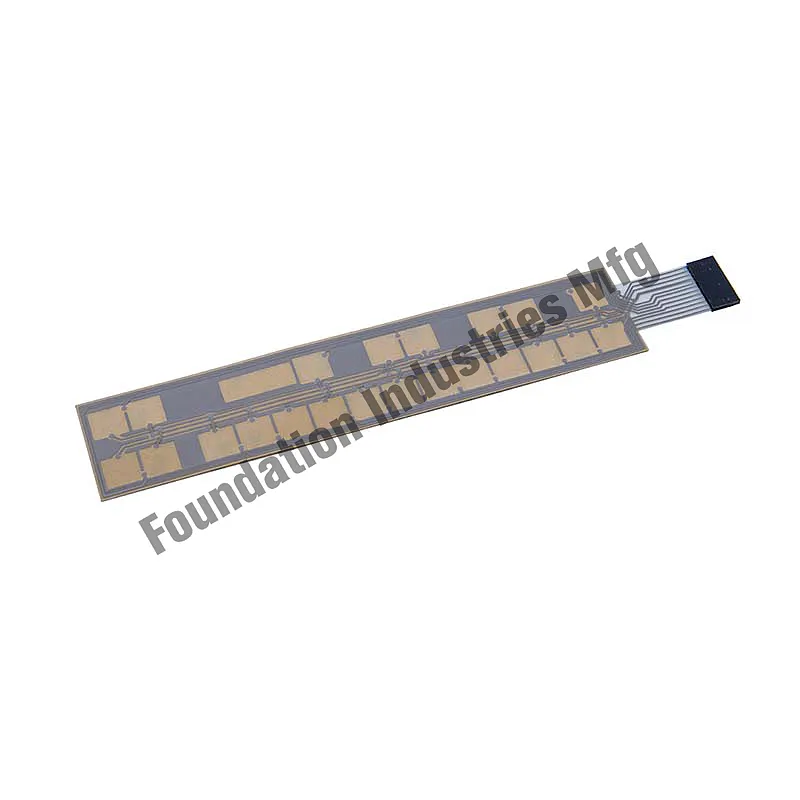

Capacitive sensing switch

A capacitive membrane switch also means touch switch. It’s a type of touch-controlled electrical switch that operates by measuring change in capacitance. It works in the same manner as a typical capacitive, the capacitance values changes when a conductive object such as your finger moves closer to the sensing area. The Capacitive switches can have intensity sliders, sensitive areas in multiple shapes such as a circle, and can have varying levels of sensitivity for activation.  You also can have options like a proximity sensor incorporated into a capacitive switch for additional functional benefits. As a capacitive switch is a sensor that senses through a non-conductive surface, thicker substrates can be used such as safety glass, or acrylic materials for a very robust switch. It’s a membrane switch that can be touch, we can do the difference printing colors on the overlays.



Product ID card

Brand: FD

Material: PET/PC/PVC/Acrylic adhesive(MacDermid Autotype/SABIC/3M/Nitto)

Size/ Thickness: Customized Size/ Thickness Accepted

Flexible Or Rigid: Yes

Certification: ISO9001:2015 /ROHS/SGS

Payment terms: T/T, West Union

Shipping by: UPS / FedEx / DHL / TNT or Other Ways Specified

Delivery time: 12~15 Working Days

Specification

①Material:

         a.Graphic overlay- F150 /F157/F200/F207/ EBG130/EBG180/EBA130/EBA180/8010-PC/8B35-PC/PC HP40S /PC HP92S/PC FR60

         b.Rear adhesive-3M 9448A/3M9080A/3M 467MP/3M 468MP/3M 7952MP/3M 9471LSE/3M 9472LSE/3M 8153LSE/3M 9495LSE/3M 9469PC/3M 9469VHB/3M 9432VHB

②Size:1.0~1800.0mm*1.0~1500.0mm

③SMD: Led, resistor, metal domes

④Keys force: 5g~1000g

⑤Circuit layers: One layer/ Two layers/Three layers/Four layers

⑥Connector: ZIF contacts / Male Pin / Female 1.27mm connector / Female 2.54mm connector / Female 5.08mm connector(FCI, Nicomatic, Memcon, Chinese brand)

⑦Waterproof design: IP61/ IP62/ IP63/ IP64/ IP65/ IP66/ IP67/ IP68

⑧Total thickness: Above 0.3mm

Electrical performance

Ω/[email protected] 200-500hm/Sq Iluminousness ≥85%
Colors Custom colors Process Printing
HRC >2H Flexible Good

Comply with ROHS & REACH

The above product information is for reference only, we mostly provide customized production according to the design requirements of customers. The all raw material we choose are all meet the demand of the ROHS  and the REACH.
