Embossing Arc-Shaped Switch

Embossing arc-shaped switch

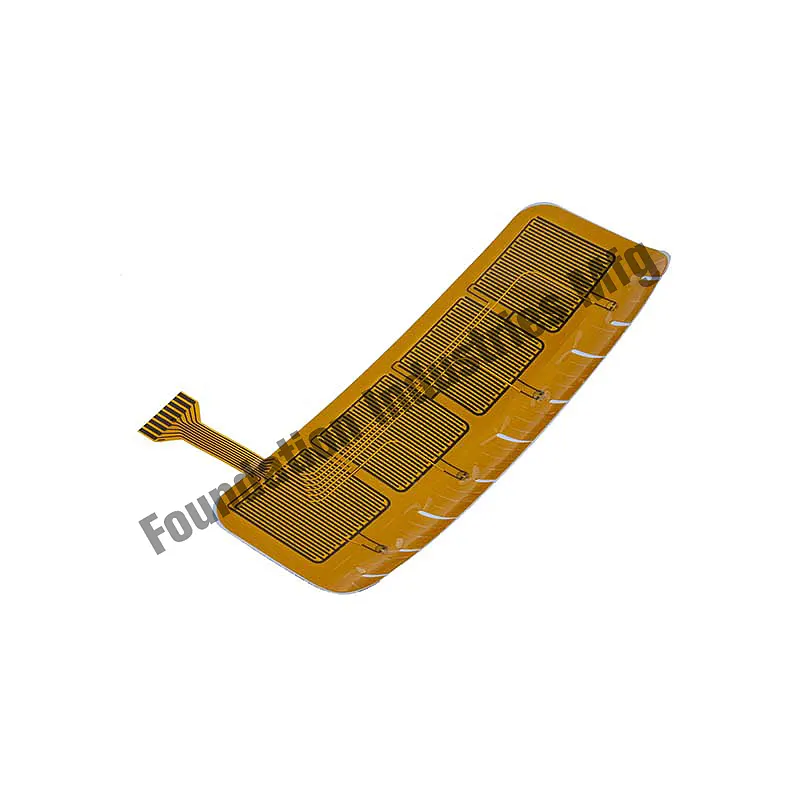

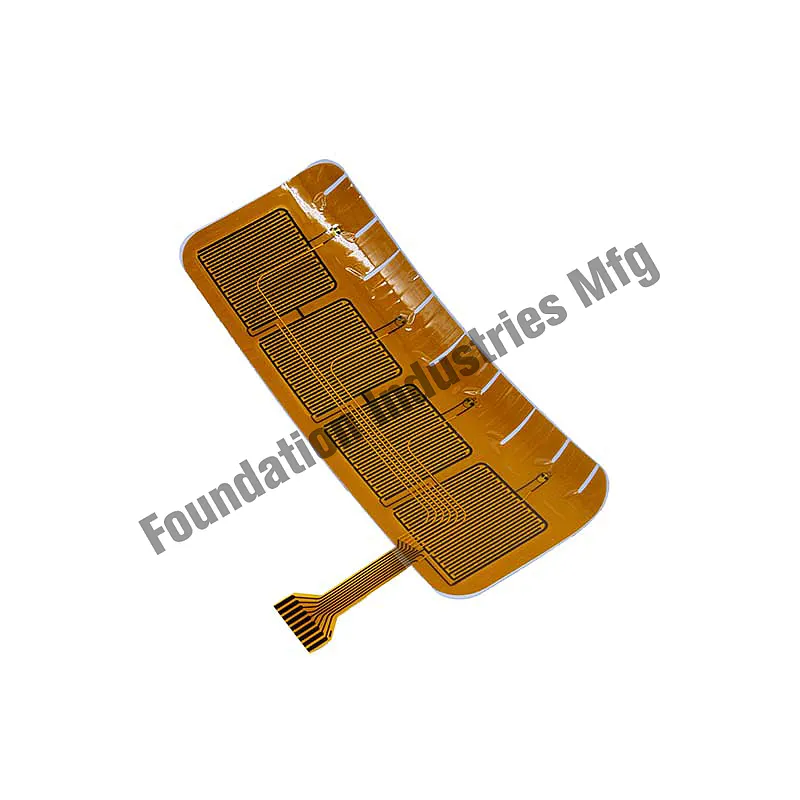

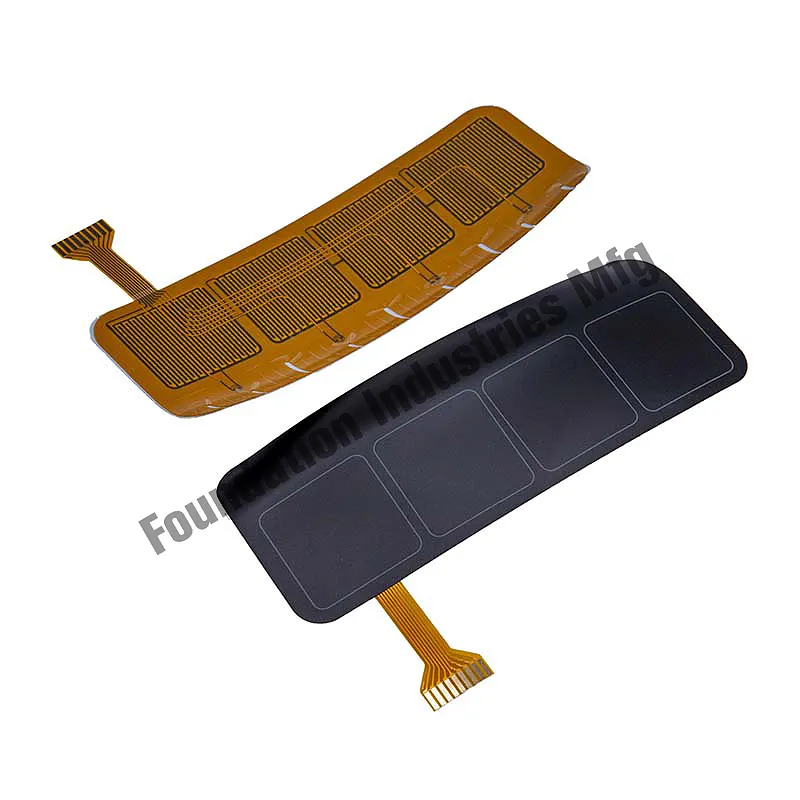

The embossing process is the very common with the membrane switch keys, the embossing can help to have a good tactile feeling. The more difficult is the arc-shape embossing for the whole membrane switch which contain the circuits. The arc-shape switch will be better for match the arc-shape enclosures. The arc-shape embossing creates a raised surface that can be completed on many areas or a single button to provide different tactile feeling. The challenges created with arc-shape embossing is the tooling make, the by the membrane switch is very flexible, and there has the printing colors and the circuits. So there we need test the arc-shape that match the enclosure again and again. The arc-shape can be permanent, and this process can help you to get the high quality for you assembly to the arc-shape enclosure.

Product ID card

Brand: FD

Material: PET/PC/PVC/Acrylic adhesive(MacDermid Autotype/SABIC/3M/Nitto)

Size/ Thickness: Customized Size/ Thickness Accepted

Flexible Or Rigid: Yes

Certification: ISO9001:2015 /ROHS/SGS

Payment terms: T/T, West Union

Shipping by: UPS / FedEx / DHL / TNT or Other Ways Specified

Delivery time: 12~15 Working Days

Specification

①Material:

         a.Graphic overlay- F150 /F157/F200/F207/ EBG130/ EBA130/ /8010-PC/8B35-PC/PC HP40S /PC HP92S/PC FR60

         b.Rear adhesive-3M 9448A/3M9080A/3M 467MP/3M 468MP/3M 7952MP/3M 9471LSE/3M 9472LSE/3M 8153LSE/3M 9495LSE/3M 9469PC/3M 9469VHB/3M 9432VHB

②Size:1.0~500.0mm*1.0~500.0mm

③SMD: Led, resistor, metal domes

④Keys force: 5g~300g

⑤Circuit layers: One layer/ Two layers/Three layers/Four layers

⑥Connector: ZIF contacts / Male Pin / Female 1.27mm connector / Female 2.54mm connector / Female 5.08mm connector(FCI, Nicomatic, Memcon, Chinese brand)

⑦Waterproof design: IP61/ IP62/ IP63/ IP64/ IP65/ IP66/ IP67/ IP68

⑧Total thickness: Above 0.3mm

Electrical performance

Comply with ROHS & REACH

The above product information is for reference only, we mostly provide customized production according to the design requirements of customers. The all raw material we choose are all meet the demand of the ROHS  and the REACH.
