Resin Button Membrane Switch

Material: PET/PC/PVC/Acrylic adhesive(MacDermid Autotype/SABIC/3M/Nitto)
Size/ Thickness: Customized Size/ Thickness Accepted
Flexible Or Rigid: Yes
Certification: ISO9001:2015 /ROHS/SGS

Resin button membrane switch

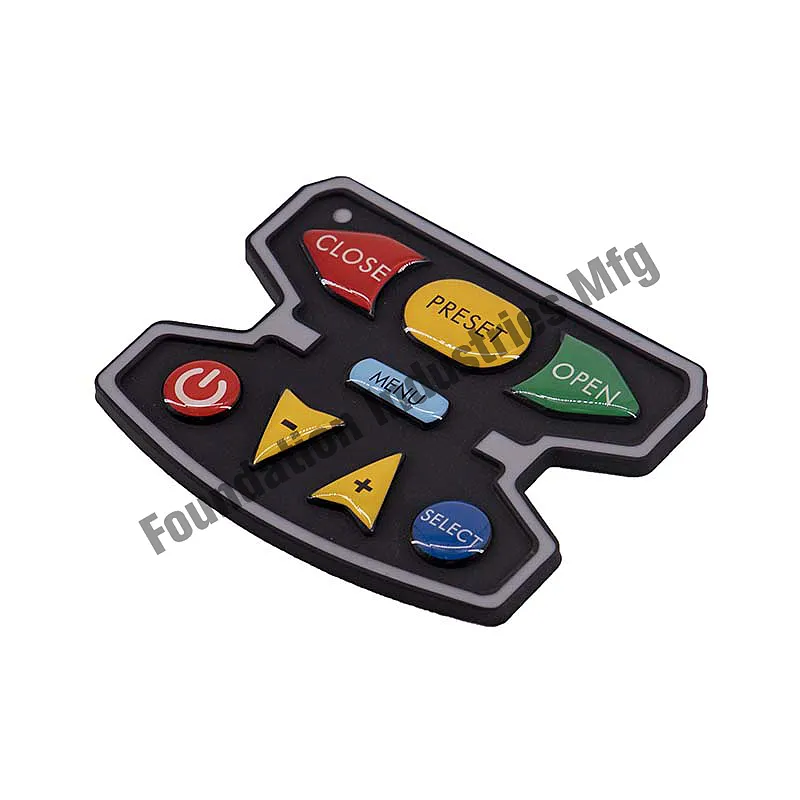

Epoxy resin use not only protect the surface of the craft product, but also the make surface gloss and brightness, that increase the surface decoration effect. The epoxy coating button membrane switch are the membrane switch coated with transparent resin on the keys surface. Epoxy coating is made up with resin and curing agent. The epoxy coating can protect membrane keys from chemicals corrosion and abrasion, it can help the membrane button have the Three-dimensional perception and also a good tactile feeling. Besides, it can help the membrane switch become crystal and beautiful.


The epoxy coating process required higher clean environment, there not allow any dust or spots on the button surface, We have to do the epoxy coating process in clean room. When put the resin on button surface, we should be careful to prevent dust contaminating the resin, prevent the resin overflow button surface, and also need to prevent the bubbles come into the epoxy resin domes. Then drying the epoxy resin surface. The epoxy resin process is not like the epoxy resin silicone rubber keypad, and also not like the Epoxy Dome Resin Sticker. Our epoxy resin process is on the whole flat surface, and we need to be sure the epoxy resin flow per our required shape, we also need to be sure our epoxy resin and be UV resistance that keep always a good vision. This is one of the very advance technology that can help to design your membrane switch very unique and top grade.


FD is the leading manufacture in the epoxy resin membrane switches, we use the automatic machine that do the epoxy resin process. We make a difference and give our customers the one more option with their membrane switch design.

Product ID card

Brand: FD

Material: PET/PC/PVC/Acrylic adhesive(MacDermid Autotype/SABIC/3M/Nitto)

Size/ Thickness: Customized Size/ Thickness Accepted

Flexible Or Rigid: Yes

Certification: ISO9001:2015 /ROHS/SGS

Payment terms: T/T, West Union

Shipping by: UPS / FedEx / DHL / TNT or Other Ways Specified

Delivery time: 12~15 Working Days

Specifications

①Material:

         a.Graphic overlay- F150 /F157/F200/F207/ EBG130/EBG180/EBA130/EBA180/8010-PC/8B35-PC/PC HP40S /PC HP92S/PC FR60

         b.Rear adhesive-3M 9448A/3M9080A/3M 467MP/3M 468MP/3M 7952MP/3M 9471LSE/3M 9472LSE/3M 8153LSE/3M 9495LSE/3M 9469PC/3M 9469VHB/3M 9432VHB

②Size:1.0~1800.0mm*1.0~1500.0mm

③SMD: Led, resistor, metal domes

④Keys force: 5g~1000g

⑤Circuit layers: One layer/ Two layers/Three layers/Four layers

⑥Connector: ZIF contacts / Male Pin / Female 1.27mm connector / Female 2.54mm connector / Female 5.08mm connector(FCI, Nicomatic, Memcon, Chinese brand)

⑦Waterproof design: IP61/ IP62/ IP63/ IP64/ IP65/ IP66/ IP67/ IP68

⑧Total thickness: Above 0.3mm

Electrical performance

Working Voltage ≤50V(DC) Working Current ≤100mA
Contact Resistance 0.5~10Ω Insulation Resistance ≥100MΩ(100V/DC)
Basic Withstand voltage 2kV(DC) Loop resistance ≤50Ω, ≤150Ω, ≤350Ω
Button Lifetime >0.5-1.0 million times Button Stroke 0.1-1.5mm
Button Feed BackTime ≤6ms Tail Folding No limit
Working Temperature -20℃~+70℃ Stock Environment -40℃~+85℃, Sealed

Comply with ROHS & REACH

The above product information is for reference only, we mostly provide customized production according to the design requirements of customers. The all raw material we choose are all meet the demand of the ROHS  and the REACH.
