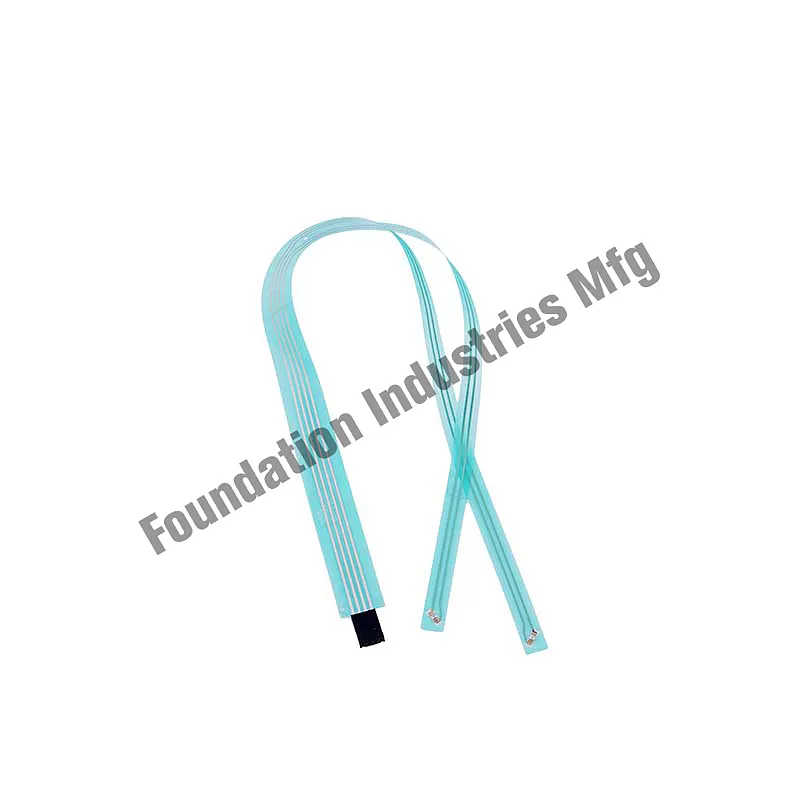

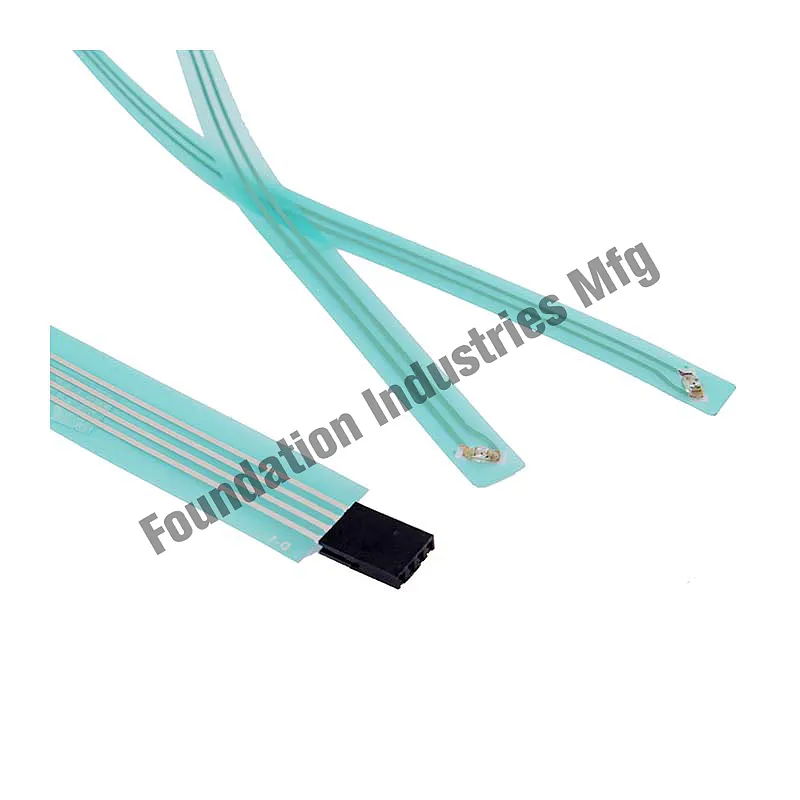

Silver and carbon ink PET circuit
A flex circuit is a combination of a thin flexible substrate(Polyester sheet), narrow conductive silver traces, surface mount complex components (SMD), and some type of termination or connector. In many instances, the printing flexible circuits offer advantages over traditional rigid circuit boards including: a thin flexible & stretchable form factor, lower cost, additive process, reduced lead-time, and several material options. We off the flexible circuits in both Polyester Film (PET) and Etched Copper on polyimide.
In Foundation, we provide the thickness of (PET) Flexible Circuit from 0.075mm, 0.10mm, 0.125mm, PET0.18 and PET0.25.
Product ID card
Brand: FD
Material: PET /Acrylic adhesive(Dongfang/3M/Nitto)
Size/ Thickness: Customized Size/ Thickness Accepted
Flexible Or Rigid: Yes
Certification: ISO9001:2015 /ROHS/SGS
Payment terms: T/T, West Union
Shipping by: UPS / FedEx / DHL / TNT or Other Ways Specified
Delivery time: 12~15 Working Days
Specification
①Material: PET 0.075, PET0.125,PET0.18, PET0.25,PET0.5
②Size:1.0~1800.0mm*1.0~1500.0mm
③SMD: Led, resistor, metal domes
④Circuit layers: One layer/ Two layers/Three layers/Four layers
⑥Connector: ZIF contacts / Male Pin / Female 1.27mm connector / Female 2.54mm connector / Female 5.08mm connector(FCI, Nicomatic, Memcon, Chinese brand)
⑦Total thickness: Above 0.075mm
Electrical performance
Comply with ROHS & REACH
The above product information is for reference only, we mostly provide customized production according to the design requirements of customers. The all raw material we choose are all meet the demand of the ROHS and the REACH.
