Standard Graphic Overlay Supplier

Material: PET/PC/PVC/Acrylic adhesive(MacDermid Autotype/SABIC/3M/Nitto)
Size/ Thickness: Customized Size/ Thickness Accepted
Flexible Or Rigid: Yes
Certification: ISO9001:2015 /ROHS/SGS

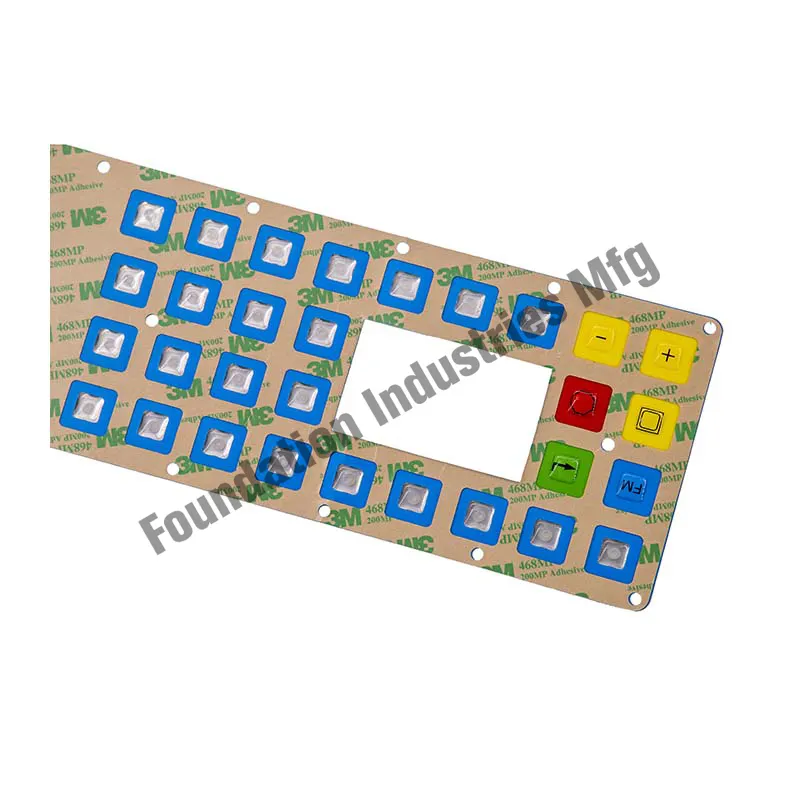

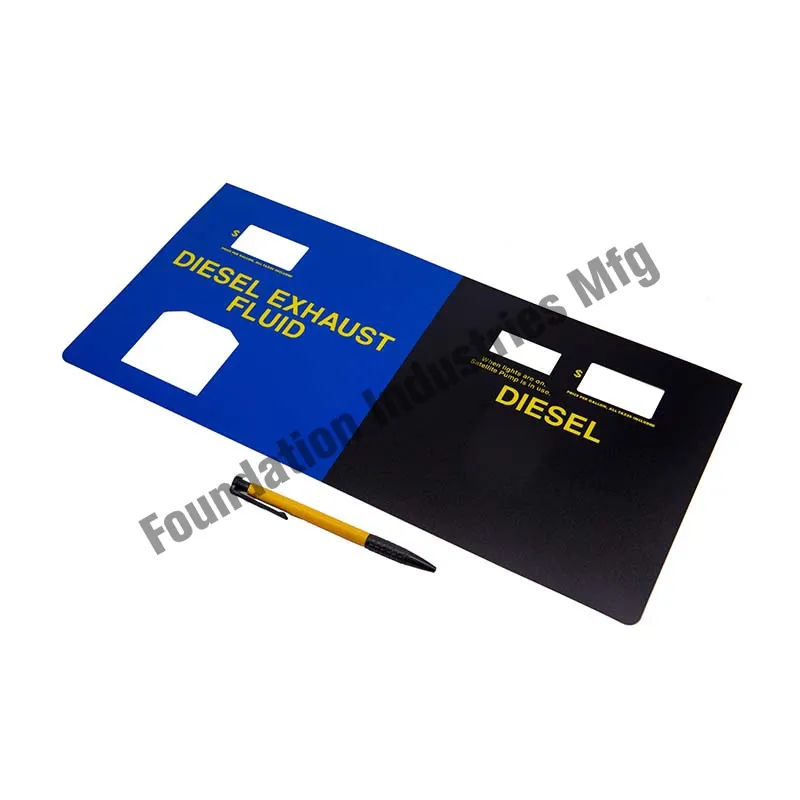

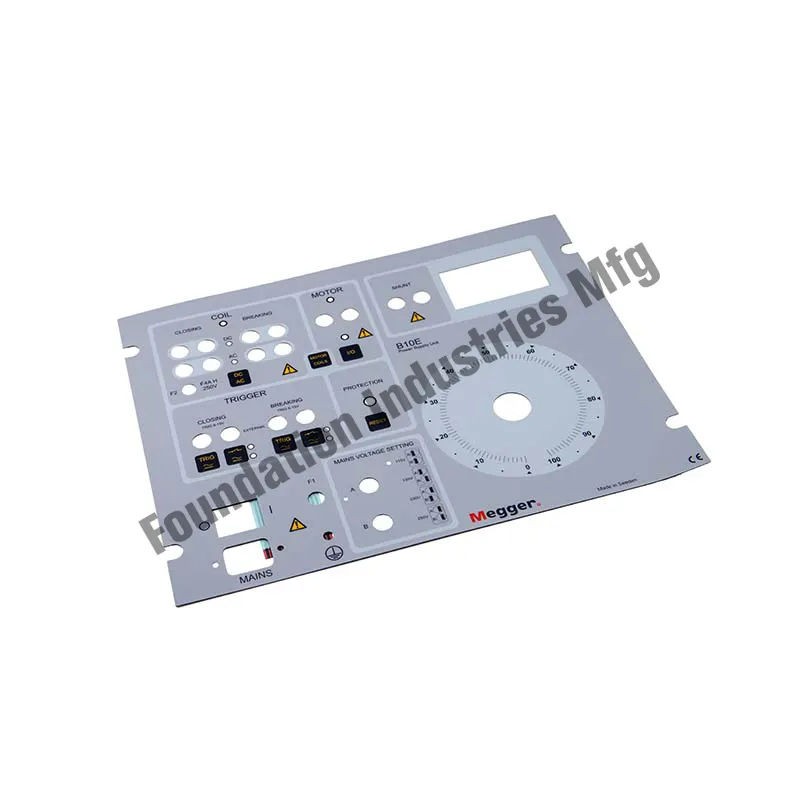

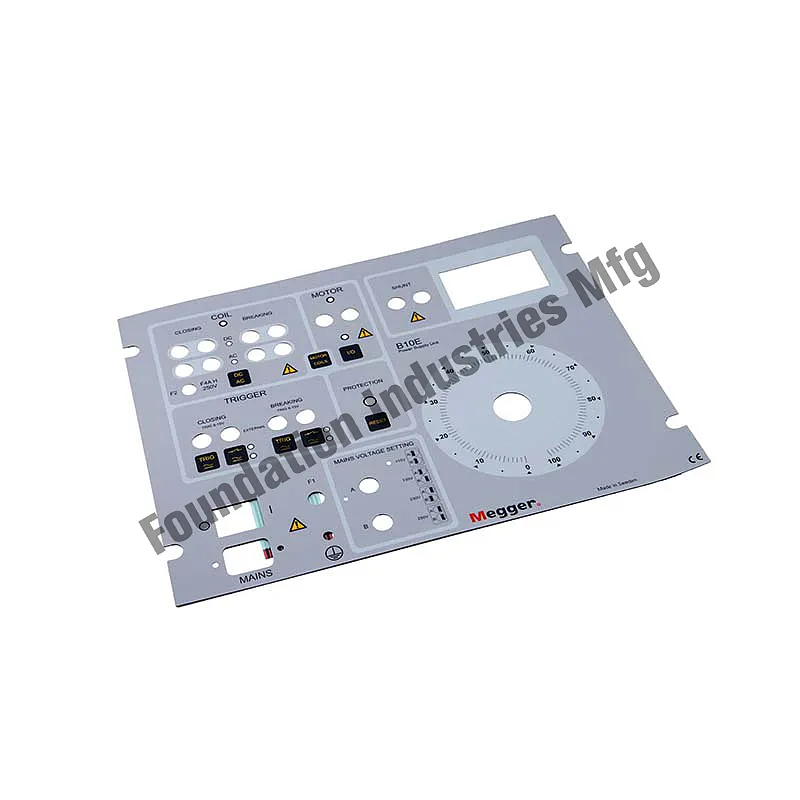

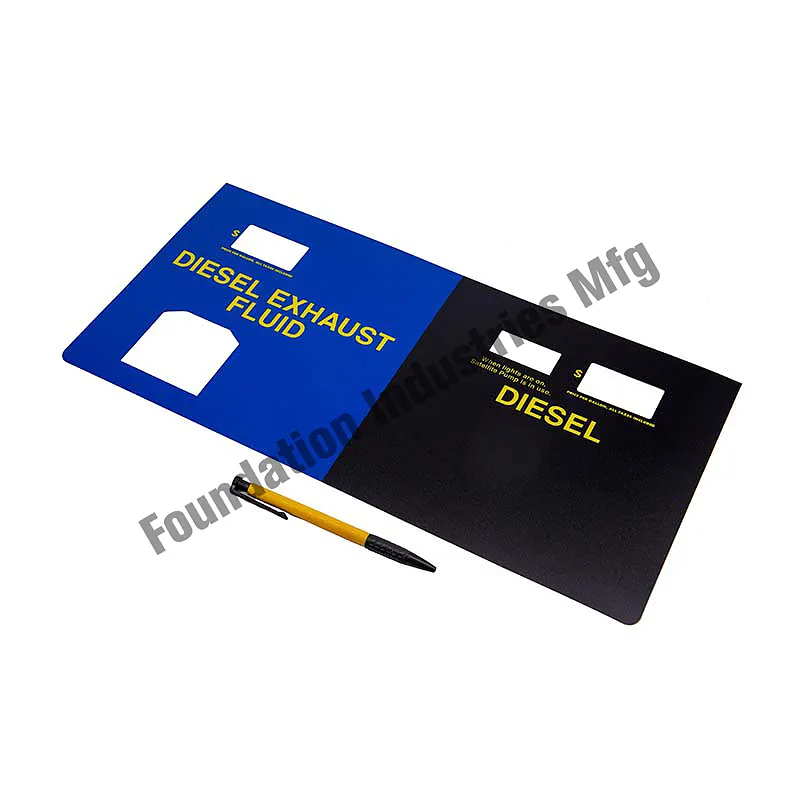

Standard graphic overlay

The graphic overlays contribute to the user experience with the membrane switch, product name, operating guide, brand logo and so on.


Besides being the surface interface between your product and its user, graphic overlays protect the membrane switch underneath, and are often subject to harsh environments and/or chemicals.  This means your overlay requires careful consideration of material and adhesive properties. The graphic overlay are often made from polycarbonate or polyester, and may include embossed buttons, integrated display windows, integrated shielding, and brand elements including color and graphics.


At Foundation, we customize the difference overlays to operate reliably under any conditions, including: extreme temperature, exposure to dirt, sand, dust and debris, humidity/water, UV rays, chemicals, and more.

Product ID card

Brand: FD

Material: PET/PC/PVC/Acrylic adhesive(MacDermid Autotype/SABIC/3M/Nitto)

Size/ Thickness: Customized Size/ Thickness Accepted

Flexible Or Rigid: Yes

Certification: ISO9001:2015 /ROHS/SGS

Payment terms: T/T, West Union

Shipping by: UPS / FedEx / DHL / TNT or Other Ways Specified

Delivery time: 12~15 Working Days

Specification

①Material:

         a.Graphic overlay

Printing Film Surface Thickness(mm) Peculiarity
PET Glossy(Normal,Hard coat) 0.13/0.18/0.25 •hard texture
•suitable for making poly dome•high corrosion resistance
Matt (Fine texture,Velvet) 0.15/0.20 •soft texture
•good fire resistance•low corrosion resistance
PC Glossy(Normal,Hard coat) 0.18/0.25/0.38/0.50/0.76/1.0/1.5/.2.0
Matt (Fine texture,Velvet) 0.18/0.25/0.38/0.50/0.76/1.0
PMMA Glossy(Normal,Hard coat) 0.5/1.0/1.5/2.0/3.0/4.0/5.0 •high corrosion resistance
•hard texture
Matt (Fine texture,Velvet) 0.5/1.0/1.5/2.0/3.0/4.0/5.0

         b.Rear adhesive-3M 9448A/3M9080A/3M 467MP/3M 468MP/3M

7952MP/3M 9471LSE/3M 9472LSE/3M 8153LSE/3M 9495LSE/3M 9469PC/3M 9469VHB/3M 9432VHB

②Size:1.0~500.0mm*1.0~1000.0mm

③Total thickness: Above 0.3mm

Comply with ROHS & REACH

The above product information is for reference only, we mostly provide customized production according to the design requirements of customers. The all raw material we choose are all meet the demand of the ROHS  and the REACH.
