Standard lighting Switch Factory

Material: PET/PC/PVC/Acrylic adhesive(MacDermid Autotype/SABIC/3M/Nitto)
Size/ Thickness: Customized Size/ Thickness Accepted
Flexible Or Rigid: Yes
Certification: ISO9001:2015 /ROHS/SGS

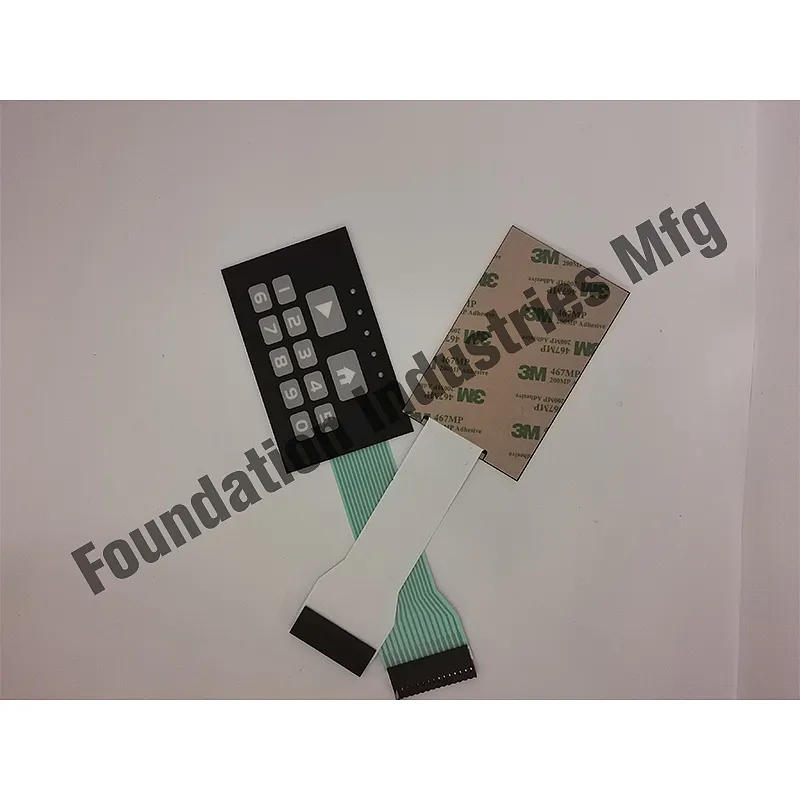

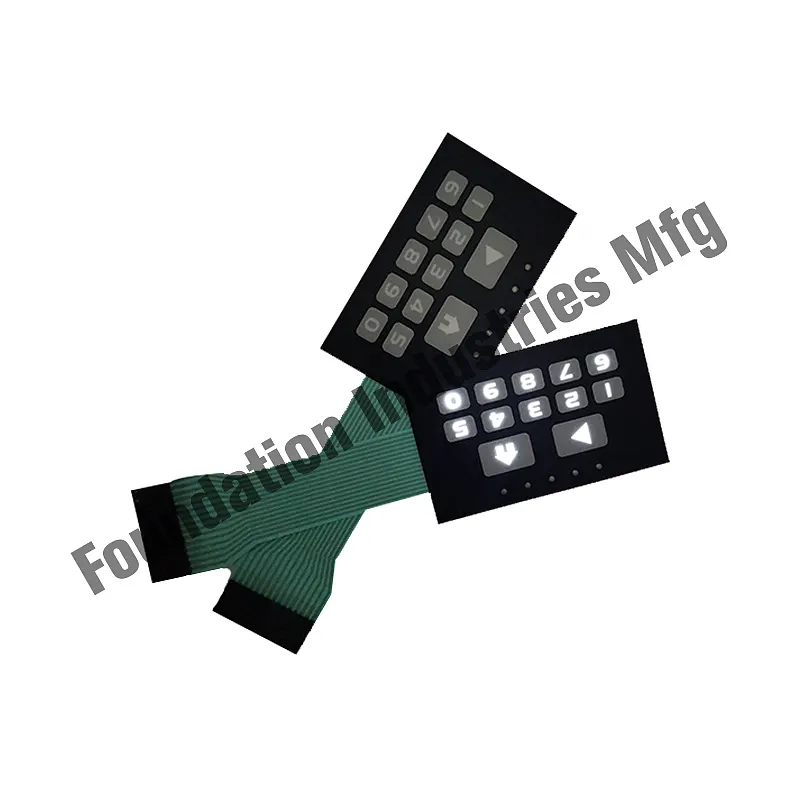

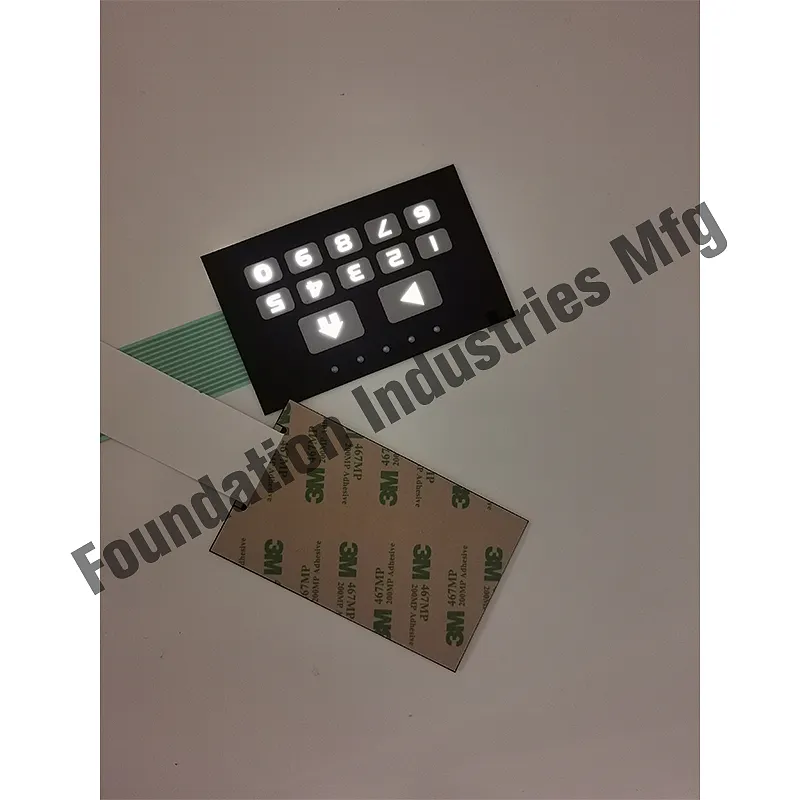

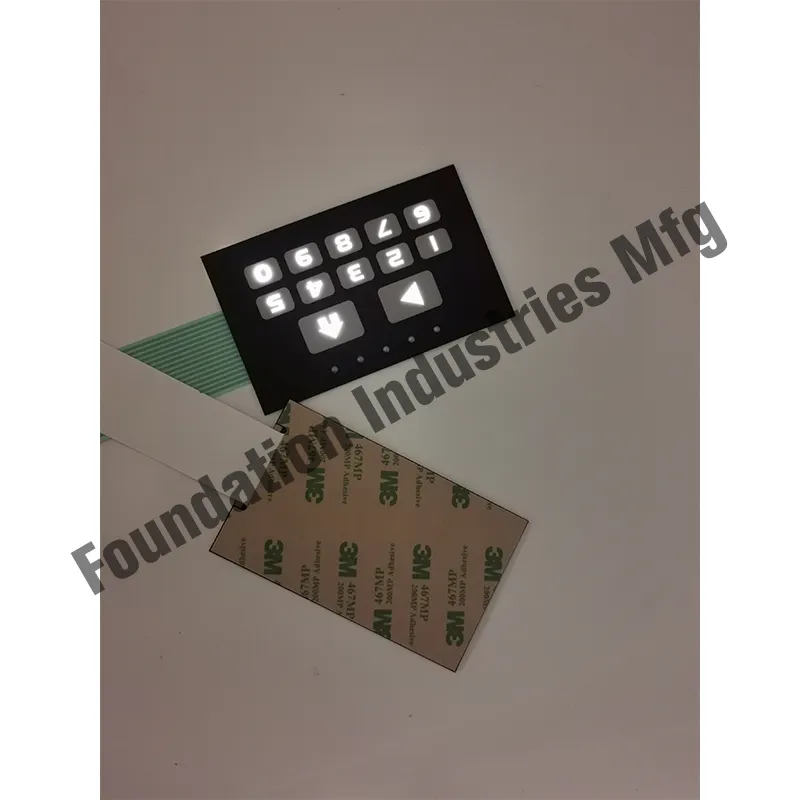

Standard LGF switch

LGF is a thin plate that for help the side-firing LEDs illumination the switch. The LGF switch is like a mobile phone, the mobile phone screen can be lighting the whole screen, the LGF switch can be lighting the text/patterns that you want to. Adding the backlighting design to the switch make it easier for users to interact with the membrane switch. It help the membrane design to be more advance、multifunction and beautiful, the users is more like a such kind control switch.


There are several backlighting options with our switch design, the popular choice include: Light Guide Film(LGF), Electroluminescent(EL) lighting, Luminous powder lighting, or Fiber optic lighting. We can check your request and give you the best suggestion.

Our standard LGF switch design use the side-firing LEDs that apply to the printing polyester circuits, or the copper flexible circuits, or the PCBs, then add the LGF plate upon the key buttons. The such design is very easy for the manufactures that assembly the parts to their machine, You don’t need to design your PCBs to be very complex/Add the control ICs, and You also don’t need to design the very high power that work for the such switch.


With the LGF switch controller design, this one of the best and economy way that design your machine superior!

Product ID card

Brand: FD

Material: PET/PC/PVC/Acrylic adhesive(MacDermid Autotype/SABIC/3M/Nitto)

Size/ Thickness: Customized Size/ Thickness Accepted

Flexible Or Rigid: Yes

Certification: ISO9001:2015 /ROHS/SGS

Payment terms: T/T, West Union

Shipping by: UPS / FedEx / DHL / TNT or Other Ways Specified

Delivery time: 12~15 Working Days

Specifications

①Material:

         a.Graphic overlay- F150 /F157/F200/F207/ EBG130/EBG180/EBA130/EBA180/8010-PC/8B35-PC/PC HP40S /PC HP92S/PC FR60

         b.Rear adhesive-3M 9448A/3M9080A/3M 467MP/3M 468MP/3M 7952MP/3M 9471LSE/3M 9472LSE/3M 8153LSE/3M 9495LSE/3M 9469PC/3M 9469VHB/3M 9432VHB

②Size:1.0~1800.0mm*1.0~1500.0mm

③SMD: Led, resistor, metal domes

④Keys force: 5g~1000g

⑤Circuit layers: One layer/ Two layers/Three layers/Four layers

⑥Connector: ZIF contacts / Male Pin / Female 1.27mm connector / Female 2.54mm connector / Female 5.08mm connector(FCI, Nicomatic, Memcon, Chinese brand)

⑦Waterproof design: IP61/ IP62/ IP63/ IP64/ IP65/ IP66/ IP67/ IP68

⑧Total thickness: Above 0.8mm

Electrical performance

Working Voltage ≤50V(DC) Working Current ≤100mA
Contact Resistance 0.5~10Ω Insulation Resistance ≥100MΩ(100V/DC)
Basic Withstand voltage 2kV(DC) Loop resistance ≤50Ω, ≤150Ω, ≤350Ω
Button Lifetime >0.5-1.0 million times Button Stroke 0.1-1.5mm
Button Feed BackTime ≤6ms Tail Folding No limit
Working Temperature -20℃~+70℃ Stock Environment -40℃~+85℃, Sealed

Comply with ROHS & REACH

The above product information is for reference only, we mostly provide customized production according to the design requirements of customers. The all raw material we choose are all meet the demand of the ROHS  and the REACH.
