PCB Circuits Switch Supplier

Material: FR-4/PET/PC/PVC/Acrylic adhesive
Size/ Thickness: Customized Size/ Thickness Accepted
Flexible Or Rigid: Yes
Certification: ISO9001:2015 /ROHS/SGS

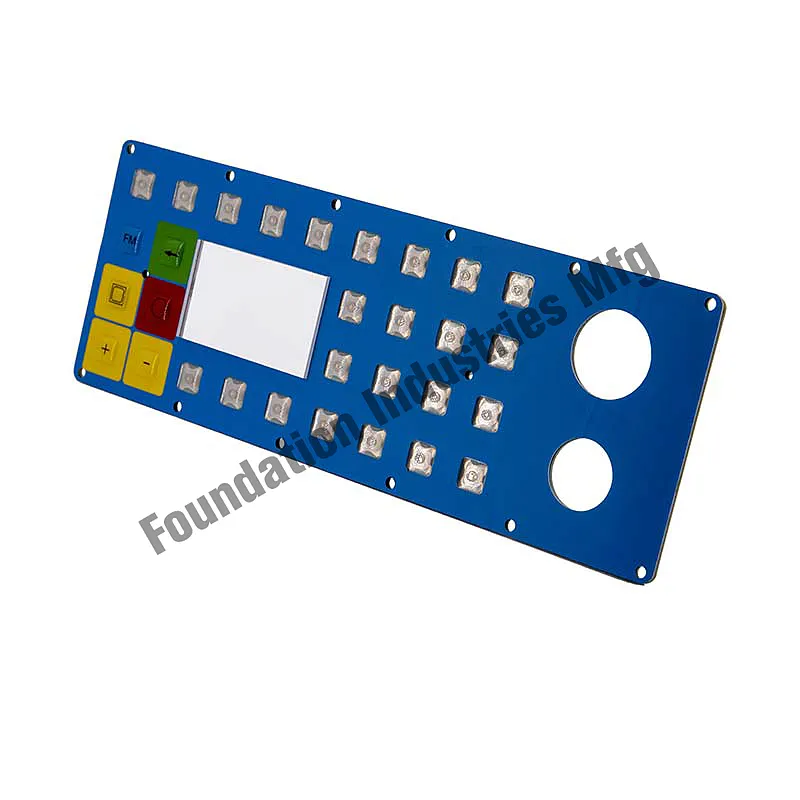

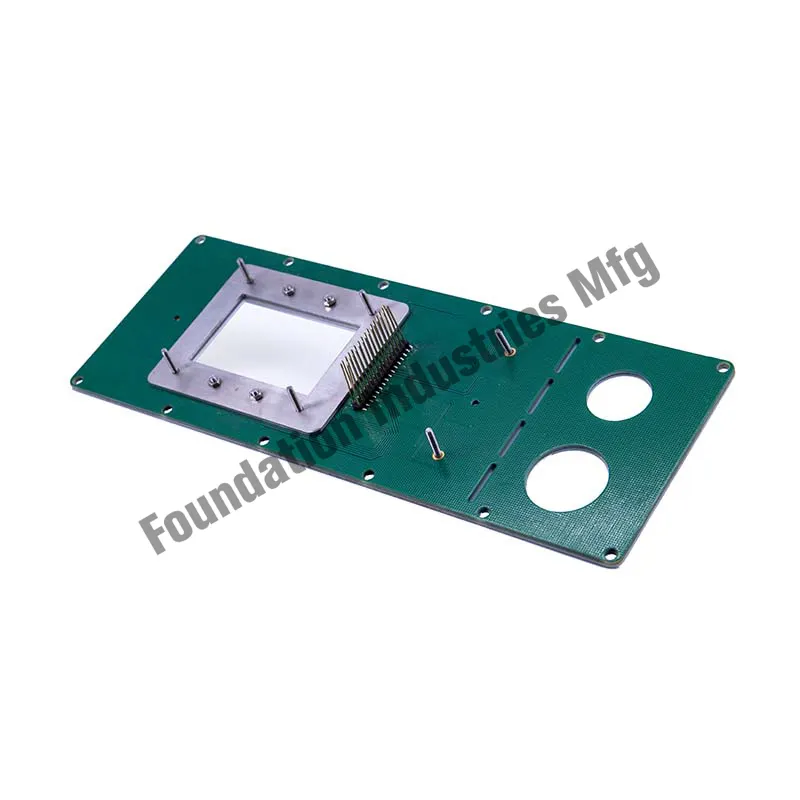

PCB circuits switch

More complex user membrane switch require higher-density, more and many miniaturized components. In these situations, printed circuit boards (PCBs) and printed circuit board assemblies (PCBAs) are often brought into play. A wide range of layers and thicknesses are available, allowing engineers to address a wide range of design requirements that catch the very special request. PCBAs also can help provide back panel support, in addition to providing a base structure for components and circuitry. Using the PCBAs in the membrane switch assembly affords many advantages to design engineers. Unlike a simple membrane switch featuring a tail that plugs into a device’s motherboard (which are always starved for real estate), PCBA-based switches provide another platform for electronics.

Product ID card

Brand: FD

Material: FR-4/PET/PC/PVC/Acrylic adhesive(MacDermid Autotype/SABIC/3M/Nitto)

Size/ Thickness: Customized Size/ Thickness Accepted

Flexible Or Rigid: Yes

Certification: ISO9001:2015 /ROHS/SGS

Payment terms: T/T, West Union

Shipping by: UPS / FedEx / DHL / TNT or Other Ways Specified

Delivery time: 12~15 Working Days

Specification

①Material:

         a.Graphic overlay-F150 /F157/F200/F207/ EBG130/EBG180/EBA130/EBA180/8010-PC/8B35-PC/PC HP40S /PC HP92S/PC FR60

         b.Rear adhesive-3M 9448A/3M 9080A/3M 467MP/3M 468MP/3M 7952MP/3M 9471LSE/3M 9472LSE/3M 8153LSE/3M 9495LSE/3M 9469PC/3M 9469VHB/3M 9432VHB

②Size:1.0~1800.0mm*1.0~1500.0mm

③SMD: Led, resistor, metal domes

④Keys force: 5g~1000g

⑤Circuit layers: One layer/ Two layers/Three layers/Four layers

⑥Connector: ZIF contacts / Male Pin / Female 1.27mm connector / Female 2.54mm connector / Female 5.08mm connector(FCI, Nicomatic, Memcon, Chinese brand)

⑦Waterproof design: IP61/ IP62/ IP63/ IP64/ IP65/ IP66/ IP67/ IP68

⑧Total thickness: Above 0.3mm

Electrical performance

Working Voltage ≤50V(DC) Working Current ≤100mA
Contact Resistance 0.5~10Ω Insulation Resistance ≥100MΩ(100V/DC)
Basic Withstand voltage 2kV(DC) Loop resistance ≤50Ω, ≤150Ω, ≤350Ω
Button Lifetime >0.5-1.0 million times Button Stroke 0.1-1.5mm
Button Feed BackTime ≤6ms Tail Folding No limit
Working Temperature -20℃~+70℃ Stock Environment -40℃~+85℃, Sealed

Comply with ROHS & REACH

The above product information is for reference only, we mostly provide customized production according to the design requirements of customers. The all raw material we choose are all meet the demand of the ROHS  and the REACH.
